Dump Truck Capacities Overview

The knowing of a dump truck’s capacity of hauling a specific quantity of material is a vital factor in making a proper estimate for construction materials or big material transportation for the preparation, budget, and legitimacy of the project. Contractors and project managers mostly make use of a standard dump truck size chart to figure cubic yard capacity as that ensures they use the right dump truck that is able to work within the adjusted weight and safety constraints. First of all, it is worth mentioning that dump trucks are not the same, with the truck size, bed volume, axle configuration, and payload capacity being differentthis is the reason they cannot refer to a singular formula. Therefore, knowing the differences among them can help you choose the right one, for example, small dump trucks for landscaping, medium ones for road projects, and super or articulated dump trucks for heavy-duty earthmoving.

The Varieties of Dump Trucks with Their Loading Capacities

Numerous dump truck styles are available, with each type ideally designed for a specific load size, efficiency, and maneuverability. Here are the main types:

Pickup-Mounted Dump Trucks

Usually, these mini dump trucks are constructed on light-duty pickup frames. They come with a small capacity of 1–3 cubic yards of materials or have a little bed capacity. Their leg chassis and wheelbase are small, and so they are suitable for driving around in residential and urban areas where the turning radius and the cab size are important.

Standard Dump Trucks

The most common type of dump trucks, standard dump trucks have a single dump body mounted to the truck frame and are powered by a hydraulic reach system with a strong hoist capacity. Their payloads depend on the bed length, width, and height, but in general, it ranges from 10 to 16 cubic yards. They are highly livable and multi-purpose, whether it is roadwork, gravel hauling, or general construction work. Their shorter wheelbase class provides better maneuverability, but the maximum load is limited compared to bigger designs.

Tri-Axle Dump Trucks

By adding a third axle, one axle is overloaded the most, and the others are more evenly distributed, which raises the GVWR (Gross Vehicle Weight Rating) and allows to load more. Generally, a tri-axle distributes 15–20 cubic yards of materials. Most states regulate load weight according to axle count and curb weight, so they are a viable solution that offers plenty of loading space and a correct weight payload.

Quad-Axle Dump Trucks

Equipped with four rear axles, these vehicles create a stable load-bearing capacity that can reach 25 cubic yards, according to bed volume and tire diameter. The addition of extra axles allows gradeability and weight distribution to improve for safer traveling on highways. Larger dimensions, however, make tight area maneuverability harder.

End Dumps / Trailer Trucks

A tractor unit tows a trailer dump trailer. These trucks may support their bed capacity exceed up to 30 cubic yards, which makes them some of the biggest bulk carriers. They can be used for longer trips and off highway use, with reliable travel speed, making them appropriate against the backdrop of the mineral field and highway construction where they act like huge dump truck operations. The safety issues arise when they dump material as their high dump height may affect the stability on an uneven surface.

Transfer Dump Trucks

Transfer dump trucks feature a separate trailer that can load and unload additional material. Their flexibility allows contractors to haul different materials while increasing overall payload range. They are common in larger-scale construction projects that require high efficiency.

Side Dump Trucks

These trucks unload material by tilting the bed sideways. This design increases safety considerations, since material can be deposited without the high center of gravity risks associated with vertical dumping. Side dump trucks also speed up unloading, making them ideal for material transport in large worksites.

How Much Can A Dump Truck Carry? Cubic Yards – Cubic Feet (Insane Trucks)

Estimating Your Dump Truck’s Capacity

In the event that a manufacturer’s published specs are incorrect, you may need to manually work out a truck’s bed volume. Here’s how:

Measuring the Dimensions of the Bed

To start off, you would need to acquire the bed’s length, width, and height. This data is trucking dimensions that matter. For instance, a bed measuring 14 ft long, 6 ft wide, and 4 ft tall equals 336 cubic feet.

Calculating Volume in Cubic Feet

The process calls for the multiplication of the three dimensions:

Volume = Length × Width × Height

This way you will get the volume in cubic feet.

Converting Cubic Feet to Cubic Yards

Since 1 cubic yard equals 27 cubic feet, you should divide your result by 27. Referring to the previous example:

336 ÷ 27 = 12.44 cubic yards

Thus, the truck is capable of carrying around 12 yards of loose material—assuming weight limits are not violated.

Factors that Affect the Load Capacity

The truck’s bed volume is not the only factor, as in real life, the max load might be lower due to other considerations.

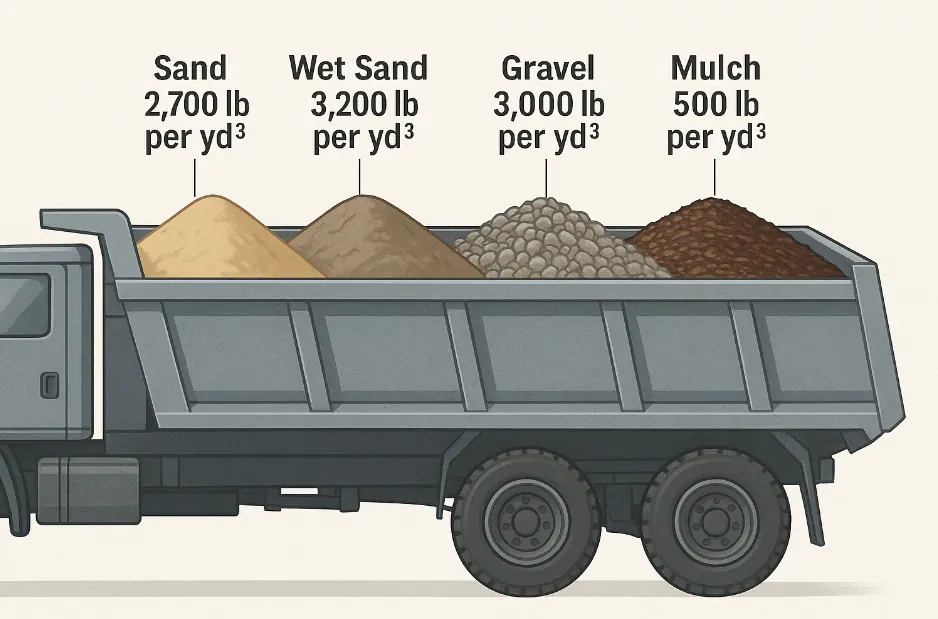

Material Density and Weight

The weight of the material is as important as its volume. Most notably, wet sand is much heavier than mulch. The weight limit for trucks generally is divided by GVWR, curb weight, chassis length, and axle configuration thus, the condition of transporting dense materials is often fulfilled even though the bed is empty.

Regulatory Restrictions on Weight

Every jurisdiction sets regulations on legal weight restrictions such as the front axle load, rear axle load, and overall gross vehicle weight. Failure to comply with these regulations not only leads to fines but also results in mechanical problems, lower safety of operation, and increases cost of maintenance. Being compliant with the law means both income saving and cost management.

Practical Hints on Material Estimates

The estimation of hauling trips needed for your construction scheme offers the advantage of time-saving and cost efficiency.

Load Calculation Formula

One of the ways is:

Number of Loads = Total Material Volume ÷ Truck Capacity

For example, if you need to move 120 cubic yards of soil and your truck’s capacity is 15 cubic yards, you’ll need 8 trips. By adding this calculation step we firstly fulfill planning (increasing efficiency) and then help to reduce downtime of crews.

The Type of the Material and Moisture Content

Type of Dump Truck	Typical Bed Volume (Cubic Yards)	Key Features
Pickup-Mounted Dump Trucks	1 – 3 cu yd	Small chassis, light-duty, ideal for landscaping and tight site access
Standard Dump Trucks	10 – 16 cu yd	Single dump body, hydraulic hoist capacity, versatile use
Tri-Axle Dump Trucks	15 – 20 cu yd	Higher GVWR, better weight distribution, regulated by axle count
Quad-Axle Dump Trucks	20 – 25 cu yd	Four axles for stability, greater payload, reduced maneuverability
End Dump / Trailer Trucks	25 – 30+ cu yd	Tractor-trailer design, long-haul, off highway use, high dump height
Transfer Dump Trucks	20 – 25 cu yd	Pulls a separate trailer for added payload and flexibility
Side Dump Trucks	18 – 23 cu yd	Dumps sideways, faster unloading, improved safety considerations
Super Dump Trucks	25 – 32 cu yd	Extra trailing axles, maximum payload, excellent for highway hauling
Articulated Dump Trucks	25 – 45 cu yd	Off-road dump trucks, high gradeability, large construction or mining sites

The weight increases with moisture. Wet topsoil, for instance, may exceed the payload capacity even before its volume is filled. For safety reasons, it is always good to consider the material transport conditions, including moisture and density, when estimating loads.

Prelude

The size of a dump truck bed alone is not enough to determine how much it can load. It is a function of truck dimensions, axle configuration, and payload range, and it can even be influenced by tire size and wheel size. With a wide range of options available, from small dump trucks used in landscaping to medium dump trucks for city work, super dump trucks, transfer dump trucks, side dump trucks, and off-road dump trucks made for mining, the choice is big. You can get the correct decisions for your construction projects by looking at a standard dump truck size chart, taking capacities of the beds, and observing legal rights about the waste increment measure info.

Regardless of your priority being site access, turning radius, or maximizing operational efficiency, the true load capacity comprehension of your truck guarantees not only better safety considerations but also smoother operations and improved cost management. The right dump truck choice combined with the accurate calculation of the capacity leads to fewer surprises on the job site and to greater productivity overall. For long-term planning, contractors often rely on a standard dump truck size chart as a reference guide to align vehicle selection with project requirements.
