Efficiency and very long loads often rely on tri axle dump truck capacity that is the first forward question you will be concerned about. A tri-axle dump truck with three at the back is a type of vehicle that contains three axles that are arranged such that these dump trucks feature a more significant payload capacity, improved weight distribution, and improved stability than single or tandem axle variants. These trucks are commonly used in construction projects, construction hauling, material transportation, and hauling materials such as gravel, sand, asphalt, or demolition waste.

Using the dump truck specifications such as the size of the truck bed dimensions, cubic yard capacity, and the payload weight is a very crucial thing for the sake of the accurate load calculation. The operators must also take into consideration the legal weight limits, hauling efficiency, and truck performance in addition to the mere numbers in order to comply and maximize their profit. The present manual is focused on the factors that determine the truck capacity. In this guide, you will learn about truck capacity factors, calculation methods, and practical considerations for everyday operations.

Factors Affecting Capacity

Material Density

The first thing to consider when determining the hauling capacity is the density of the material. Dissimilar materials like sand, gravel, crushed stone, topsoil, or recycled concrete have specific densities, which determine their value for loading.

For instance:

• Topsoil weighs an average of 1,000–1,200 lbs per cubic yard.

• Gravel’s weight is usually in the 2,700–3,000 lbs-per-cubic-yard range.

• Wet sand or dense stone can go beyond 3,200 lbs per cubic yard.


Since trucks are not only limited by bed capacity but also by total legal gross weight, the high-density materials will reach maximum payload weight long before the bed is full. Here is the place where volumetric weight becomes a vital factor: it displays the space occupied by a material in relation to its mass. Effective material handling involves the knowledge of both cubic yard capacity and weight per cubic yard since overloading can be avoided.

Truck Dimensions

Capacity is also largely influenced by the truck design. Truck bed dimensions (including bed length, bed height, and width) are the parameters used to set the maximum volume calculation for the truck. For example, a 20-foot-long, 8-foot-wide, and 4-foot-high bed theoretically can hold up to approximately 23.7 cubic yards.
Nevertheless, the usable bed space might be less than that because of the kind of tailgate, the dumping angle, and the tipping speed limitations. Higher dumping angles are for faster unloading, but they require stable payload weight to avoid spills which is a thing that is done carefully. Chassis capacity, frame strength, and suspension capacity how much material can be taken without the truck performance or safety being compromised.

Calculating Capacity

Volume Calculation

The volume calculation starts off by measuring the inside dimensions of the dump bed: bed length, bed height, and width. Then these values are multiplied to get the total cubic feet, which is then divided by 27 to get the cubic yards (conversion factor). Thus the cubic yard capacity useful for calculating how much material can be hauled.

Example:

• Bed length: 18 ft

• Width: 7.5 ft

• Height: 4 ft

• Volume = 18 × 7.5 × 4 = 540 cubic feet

• 540 ÷ 27 = 20 cubic yards


In this case, the truck could carry around 20 cubic yards of loose material types as long as it is poured evenly, and there is no spillage.

Weight Calculation

Weight calculation ensures legal compliance with weight limitations. The finding of volume comes first then after that, the multiplication of the volume by the material density is made. For example, 20 cubic yards of gravel weighing 3,000 lbs per cubic yard every single one weighs 60,000 lbs.
At this point, the operators have to be sure about the curb weight on which the truck is empty, axle weight limits, and the GVW (gross vehicle weight) rating which is the maximum allowed weight for the car. And if that the load and vehicle together overload the GVW or legal weight limits, then the truck cannot carry that load legally and safely.

Smart contractors manage loads using various means including adjusting the material mix, reducing the volume, and redistributing the load which are, respectively, the most common and the best ways of doing so. This sort of strategy assures compliance and it also promotes a smooth running of the hauling operation.

Practical Considerations

Legal Weight Limits

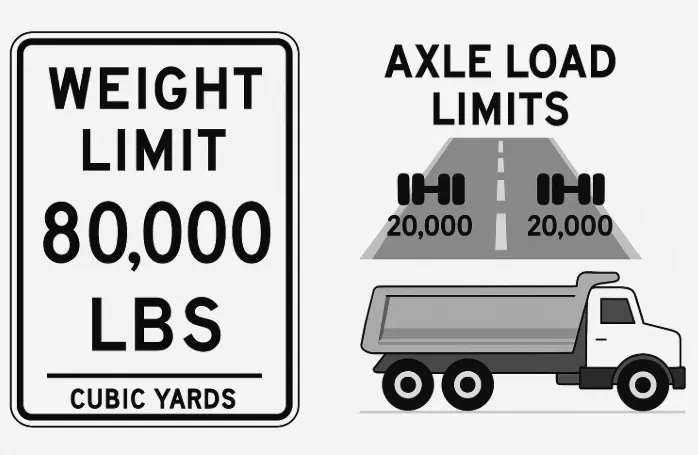

The dump bed might have high capacity, but the ultimate acceleration is through the legal weight limits that are what and the only thing can be carried. To protect the road surface and to enhance safety, federal and state governments have established axle load limits and legal gross weight restrictions.
For tri-axle trucks, the GVW can vary from 54,000 to 80,000 lbs according to the permit loads, roads, and local ordinances. Operators must be aware of ballasting, route planning, and access ramps issues when deciding on the safest load. Highway permit loads may be used under certain conditions, but they need permits and routing approvals.

Loading Techniques

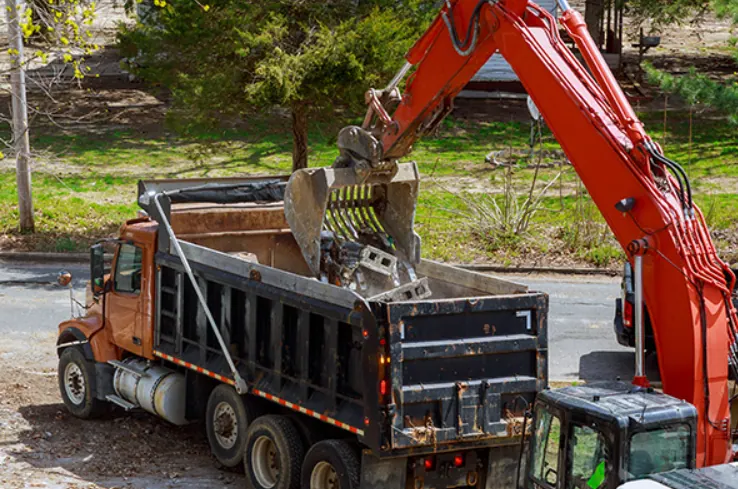

The proper loading level is recommended to obtain the best conditions in safety and payload stability. Material must be put evenly without shifting it during transport since this could lead to vehicle handling issues or a tipping over.
The load securement goes hand in hand as well. Tarps, tailgate type, and cargo-securing devices are used to prevent spillage. In some job sites, material segregation of the material is necessary to avoid mixing the different types of material.
Proper attention should be paid to dumping angles and tipping speeds to prevent dangerous load transfers that could destabilize the truck. Fleet managers often insist that drivers are taught load transfer and hydraulic dump angle awareness to reduce accidents.

Summary

Comprehending tri axle dump truck capacity is not limited to just looking at bed size. It is all about balancing material density, truck dimensions, and weighing volume calculation against weight calculation. Moreover, operators need to adhere to payload distribution limits by optimizing loading techniques and carefully planning hauling routes.

Tri-axle trucks are not only used in construction hauling but are also essential for material transport and major construction projects. They represent critical construction equipment with an impact on fleet optimization, route planning, and maintenance impact. Companies that consider these factors can achieve optimum truck performance, greater hauling efficiency, and improved job satisfaction, while staying profitable and safe.

In the final analysis, truck capacity goes beyond the numbers. The accurate definition of capacity includes the amount of space a material types in a hydraulic dump truck, as well as factors like payload stability, fuel efficiency, and vehicle maintenance. By mastering load optimization, truck driver regulations, and smart use of ballast options, operators can unlock the full potential of tri-axle trucks, ensuring reliable results across diverse hauling environments.
